80 Series New Construction Windows


Live smarter and efficiently with Alpine 80 Series Windows. Experience personalization by mixing shapes and sizes while benefitting from the heavy-duty vinyl frames combined with 1” insulated Low-E glass that drive thermal performance. Advanced-technology and quality craftsmanship work hand-in-hand to provide energy savings and timeless beauty for your home, while demonstrating Alpine’s commitment to quality and ingenuity.
Standard Features
- Compatible with wood, vinyl and stucco applications
- Nailing fin is welded at all four corners for an easier, weather-tight installation

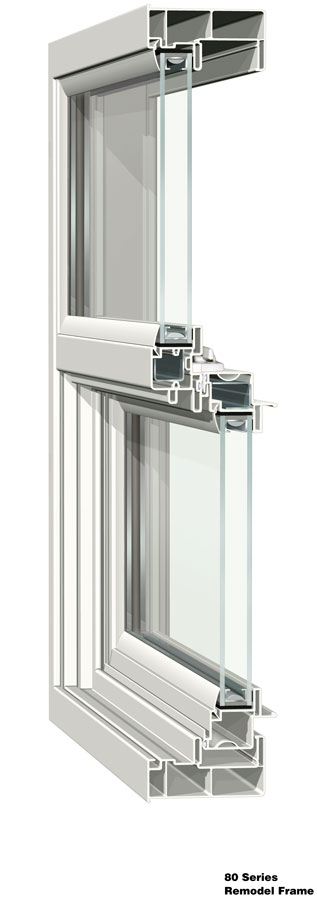

- Precision-welded frame and sashes provide strength and increased energy efficiency
- Removable fiberglass screen for easy cleaning
- 1” insulated glass unit with warm-edge technology and exterior glazing
- Metal reinforced at locking rail
- SolarTherm insulatd glass package options
80 Series Single-Sliding
- 3-3 ⁄8” frame offers classic beauty for new construction as well as retro fit applications.

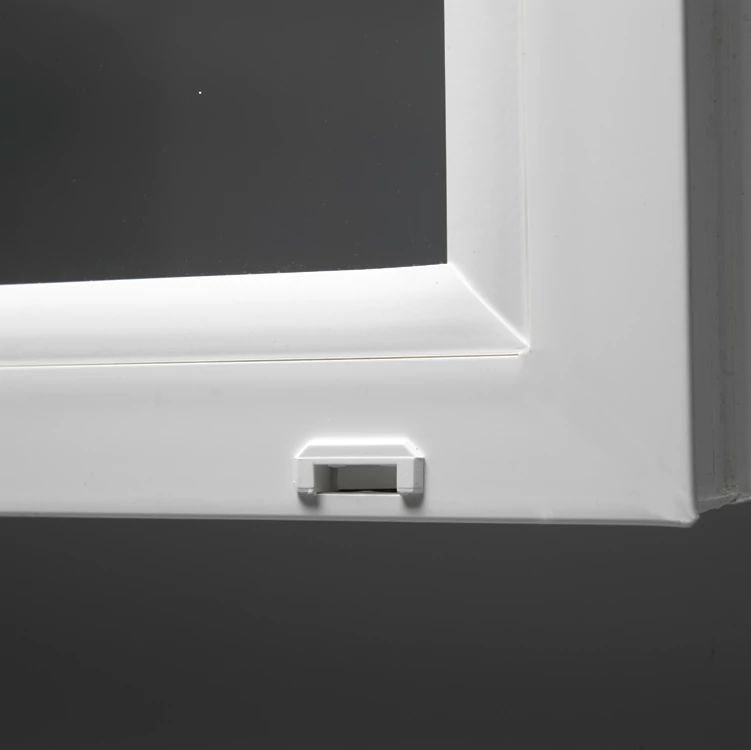

- Water management system includes offset drainage to the outside with special weep gates to help keep wind, water and insects out.
- 1” insulated glass unit with warm-edge technology and exterior glazing.
- Standard cam lock and keeper meet the toughest forced entry standards.
- Full length interlocking lock rail and double weatherstripping reduces the potential for air and water infiltration and enhance thermal performance.

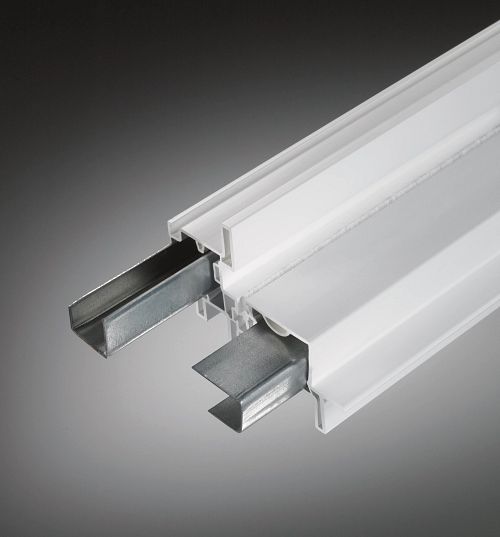

- Locking rail is metal reinforced for strength and durability.
- Integral lift rails make opening smooth, sure and easy.

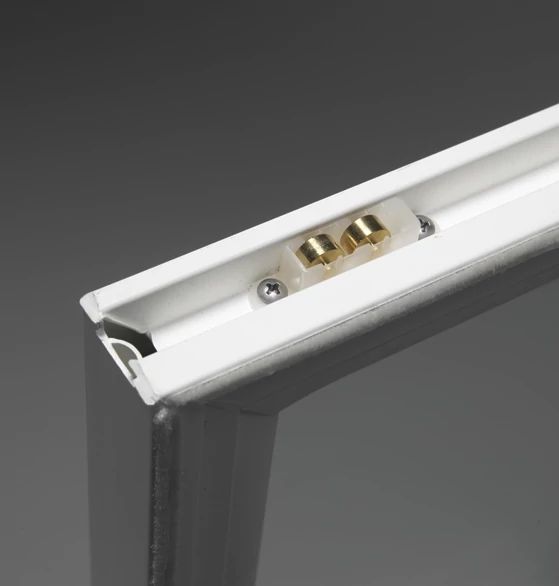

- Adjustable, tandem brass rollers in a non-corrosive housing provides smooth operation and a quick site line adjustment in the field.
80 Series Single-Hung
- 3-3 ⁄8″ frame offers classic beauty for new construction as well as retro fit applications.
- 1″ insulated glass unit with warm-edge technology and exterior glazing.
- Standard cam lock and keeper meet the toughest forced entry standards.
- Full length interlocking lock rail and double weatherstripping reduces the potential for air and water infiltration and enhance thermal performance.
- Locking rail is metal reinforced for strength and durability.
- Integral lift rails make opening smooth, sure and easy.
- Side load sash operates on two concealed pre-calibrated block and tackle balances.
80 Series Picture
- Attractively styled vinyl window with sturdy 3-3 ⁄8″ frame depth and integral nailing fin.
- Precision welded frames eliminate potential leak points at sill corners, allowing for easy water runoff and improved energy efficiency.
- Narrow sight lines for a clean attractive design.
- 1″ insulated glass unit with warm-edge technology and exterior glazing.
- Nailing fin is welded at all four corners for an enhanced weather tight installation.
- Special shapes available.
80 Series Casement
- 3 3 ⁄8” frame offers classic beauty for new construction as well as retrofit applications and can achieve a “Commercial” window rating for strength.
- A single-lever, multi-point locking system combined with triple weatherstripping ensures added
security and protection from the elements. - Standard high-end hardware and hinges provide smooth window operation and can be upgraded to stainless steel.
- A collapsible handle for miniblind applications is available as an upgrade.
- A snap-in, extruded aluminum lip screen frame with fiberglass mesh provides a strong and seamless solution to keeping the insects out.
- Multiple casement configurations and triple glazing available.
80 Series Awning
- 3 3 ⁄8” frame offers classic beauty for new construction as well as retrofit applications and
can achieve a “Commercial” window rating for strength. - The standard scissor hardware and hinges provide effortless operation and can be upgraded
to stainless steel. - Triple weatherstripping and independent lever locks at each jamb providing security and
protection from the elements. - A snap-in, extruded aluminum lip screen frame with fiberglass mesh provides a seamless
solution to unwanted insects. - Multiple awning configurations and triple glazing available.
Photos
Colors
**White, Almond and Desert Clay are solid colors formulated throughout.
*Black, Architectural Bronze and Silver exterior finishes are available with a White or Almond interior only.
We recommend you make final color selections using actual product samples. All colors may not be available in all markets.
